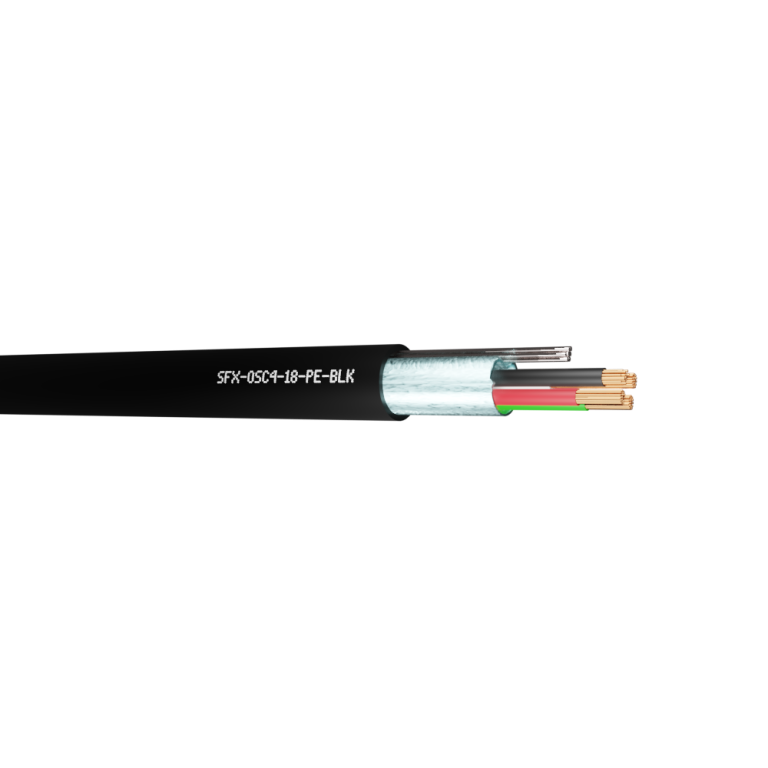

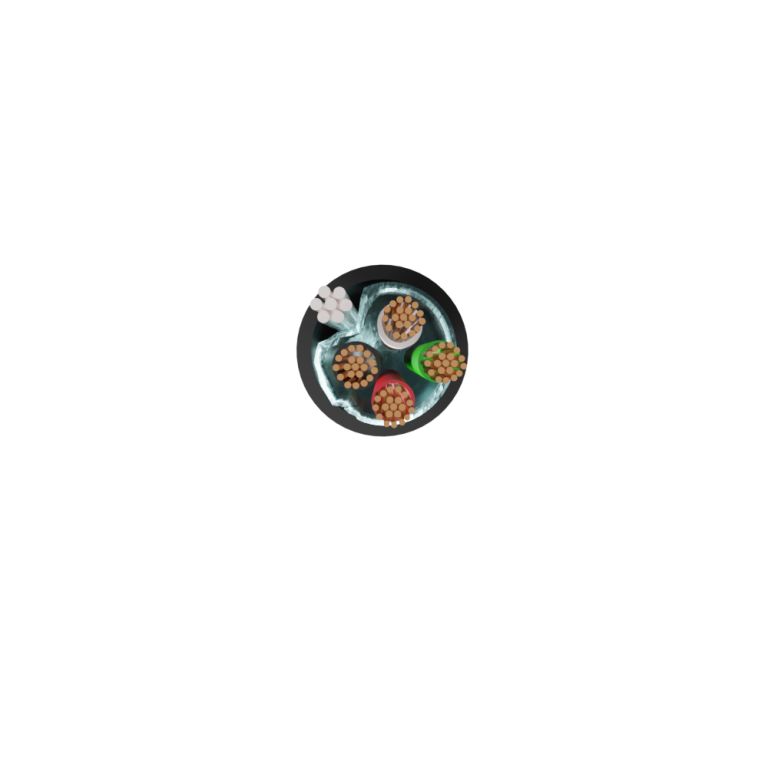

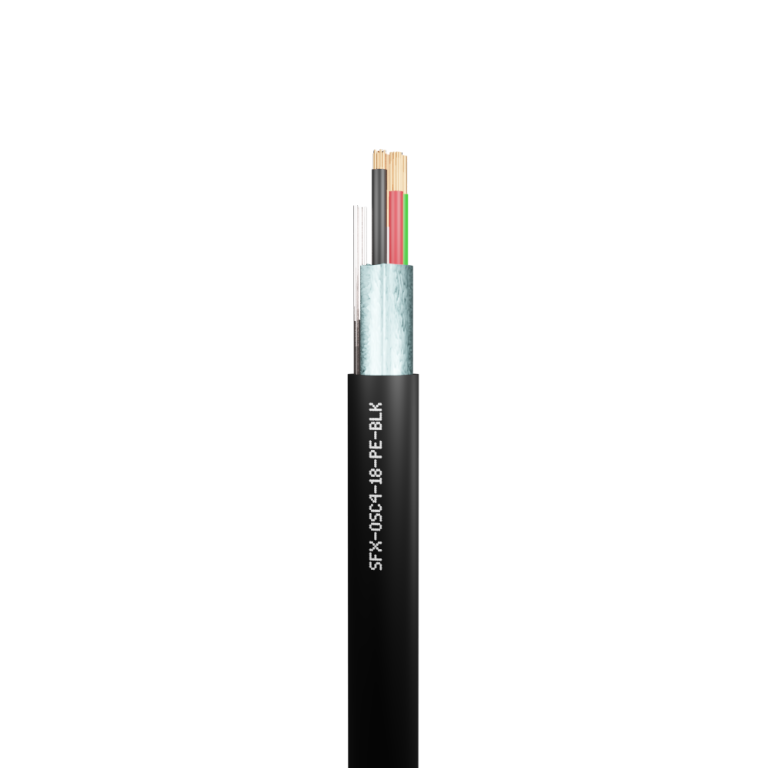

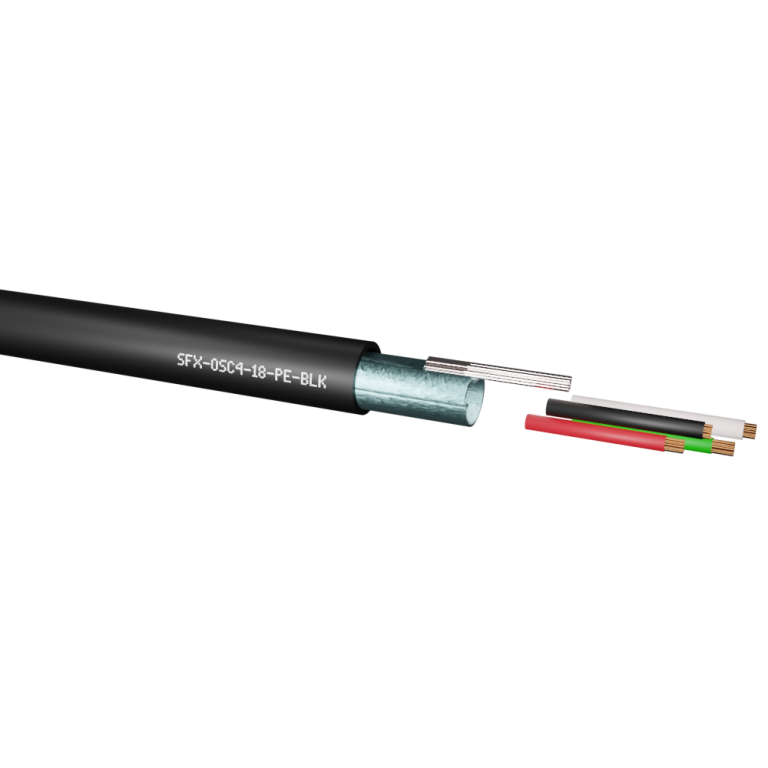

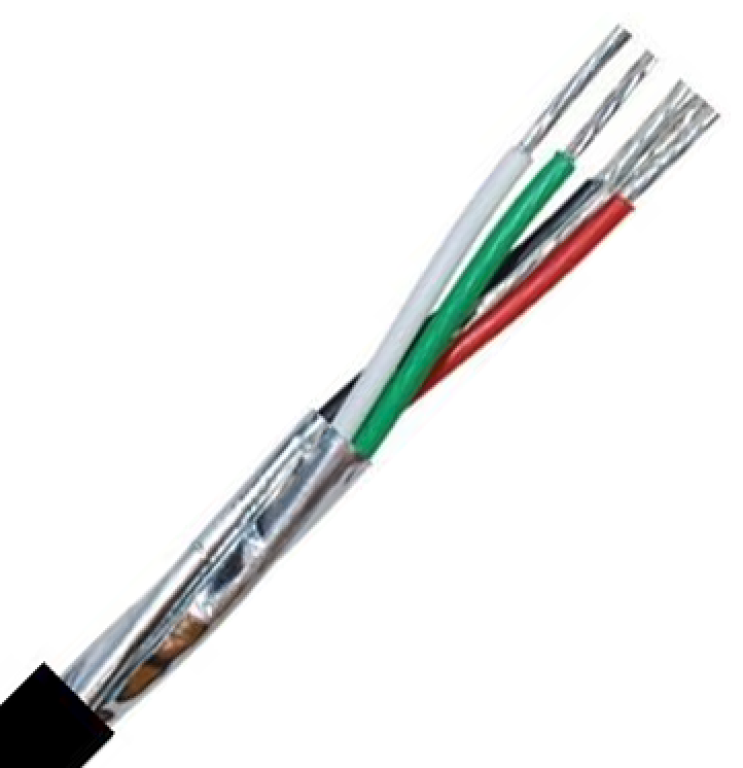

1m (per metre) OSC4-18 4 Core 18AWG Overall Foil Screen 600V Black PE (9418) - Cable
SFX/OSC4-18-PE-BLK-1
£1.20 inc. VAT
£1.00 ex. VAT
Available in 4-5 business days
-
1m (per metre) OSC4-18 4 Core 18AWG Overall Foil Screen 600V Black PE (9418) CPR:Fca
- Additional screening makes this cable suitable to be installed in areas where protection from electrical interferance is required
- Used for RS232 protocol
- Polyethylene plastic is excellent for use externally above ground or below ground inside ducting
- A quality alternative to genuine Belden cable
- UV resistant
- Foil for protection against electrical interferance
- Brand
- Securi-Flex
- Guarantee
- 25 Years
- Category
- Belden Equivalents
- Product Code
- SFX/OSC4-18-PE-BLK-1
- Size
- Per 1m Lengths
- Dimensions
- Overall Diameter (mm): 6.20 ±0.20, Conductor Diameter (mm): 0.24 ±0.008 x 19(0.82mm²), Insulation Thickness (mm): 0.3, Insulation Thickness 2 (mm): 1.80 ±0.15, Jacket Thickness (mm): 0.8, Stranded Diameter (mm): 1.02, Drain Wire Conductor Diameter (mm): 0.30 ±0.008 x 7
- Main Colour
- Black
- GTIN
- 5056631505402
-
