3/4 APARTMENT CONTROL PLUS HOT CARTRIDGE

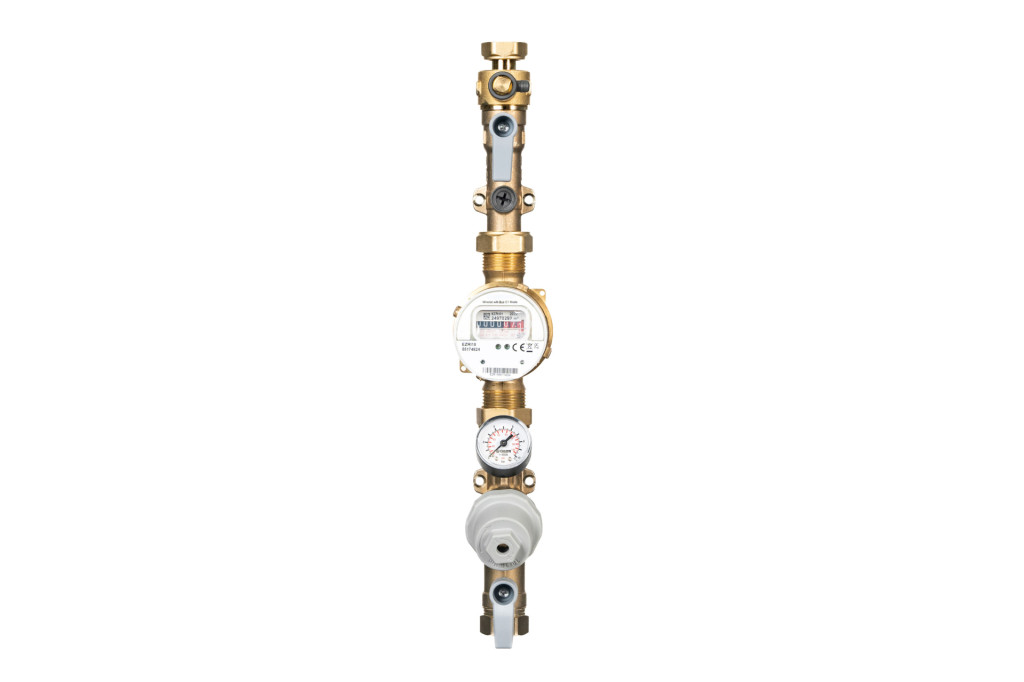

- The Altecnic 133-504 apartment control assembly plus combines several functions into two monobloc bodies with a carrier for an optional water meter for use in multi-occupancy buildings
- A monobloc pressure reducing valve assembly consisting of a ball isolating valve, pressure reducing valve, port for a pressure gauge, test port, threaded inlet connection, swivel outlet connection and pressure gauge (this is supplied with the assembly
- The pressure reducing valve has a self-contained cartridge which is factory set at 3 bar but is adjustable between 1 to 5.5 bar
- The test port is suitable for use with a pressure gauge, temperature probe or for monitoring purposes
- A water meter carrier with blanking cap. Along with optional cold or hot MBUS meters cartridges
- A monobloc assembly consisting of a double check valve with test port, a ball isolating valve, a drain/air vent and two swivel connections
- The the drain cock is rotatable 360˚ on 2 axes, around the operating stem and the monobloc body
- Brand
- Altecnic
- Category
- Meters
- Product Code
- 133-5045
- Weight
- 2447 g
- GTIN
- 8016615703610
-
